Model: |
E-10 |
E-10A |
|
Type: |
10" Two Way Passive Full Range Loudspeaker |
10"Two Way Active Full Range Loudspeaker |
|
Frequency Response (-6 dB) : |
65Hz-19KHz |
65Hz-19KHz |
|
Power Handling
(RMS / Peak) (AES) : |
300W/1200W |
300W RMS (1% THD) |
|
Sensitivity (1W / 1M) : |
97dB |
97dB |
|
MAX SPL (1M) : |
128dB |
|
|
Impedance: |
8¦¸ |
|
|
Dispersion (H ¡Á V) : |
70¡ã ¡Á 55¡ã, HF-Horn rotable |
70¡ã ¡Á 55¡ã, HF-Horn rotable |
|

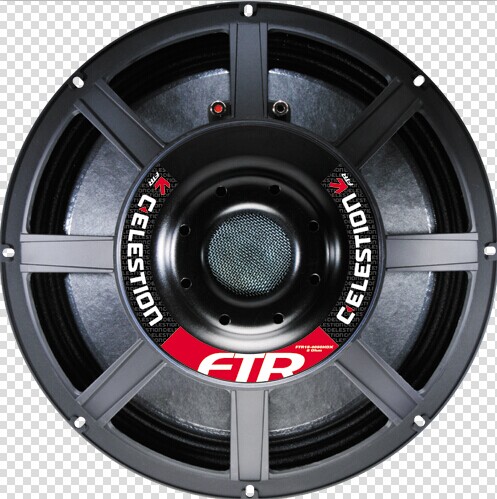

LF Transducer: |
10'' Magnet, 3'' voice coil |
10'' Magnet, 3'' voice coil |
|

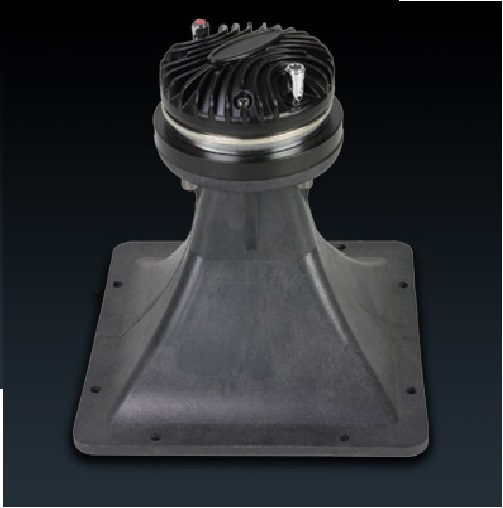

HF Transducer: |
PEN diaphragm,
1.75'' voice coil |
PEN diaphragm,
1.75" voice coil |
|
Crossover Frequency: |
1.9KHz, Passive |
1.9KHz |
|
Protection: |
Tweeter Protection |
Tweeter Protection |
|
Input Interface: |
2x Neutrik NL-4
pins+1/-1 input/ THRU, pins+2/-2 N.C. |
XLR/ 6.3mm jack(combo)/ Output: XLR |
|

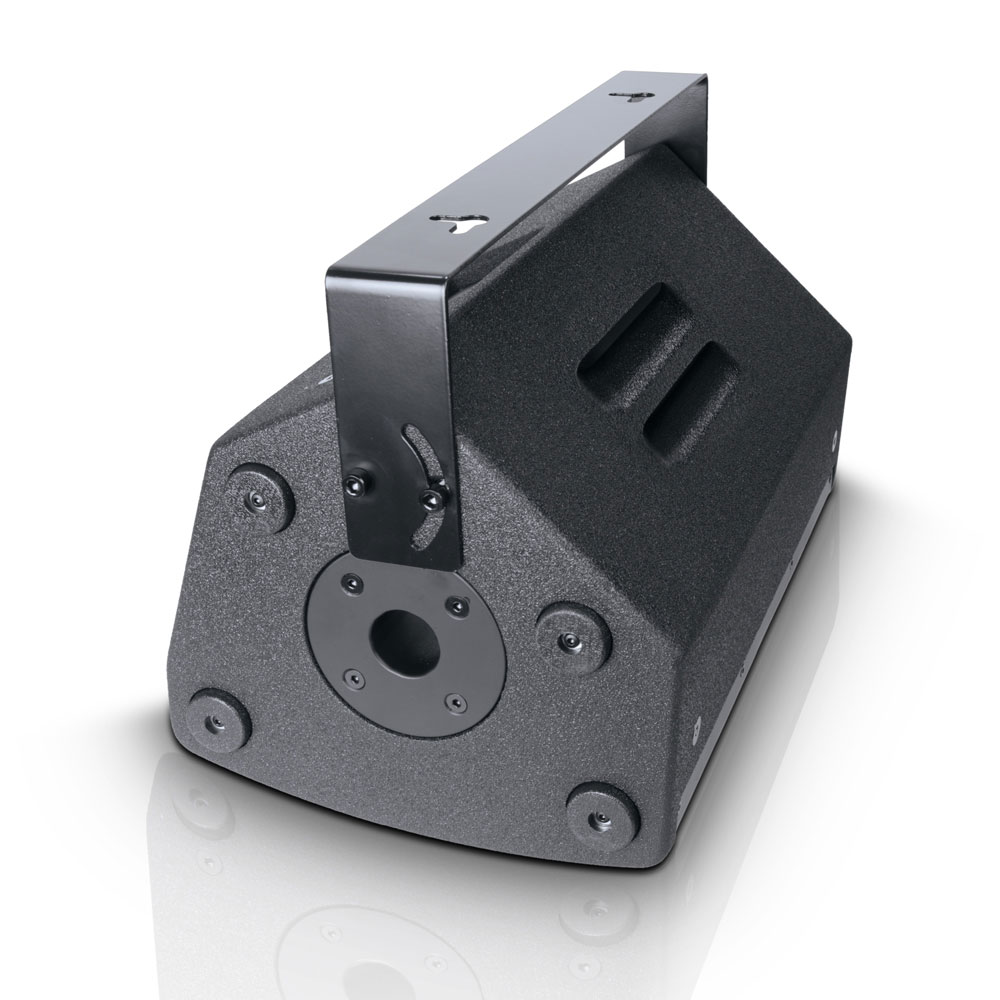

Riging System: |
6¡ÁM8 rigging points |
|
|
Cabinet Material/ Paint: |
15mm Birch Plywood / Polyurea Paint |
15mm Birch Plywood / Polyurea Paint |
|
Dimensions (W ¡Á H ¡Á D) : |
340 x 535x 322mm |
340 x 535x 322mm |
|
Net Weight: |
20Kg |
20Kg |
|
Features: |

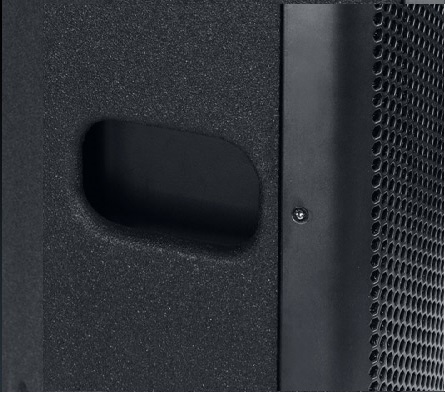

Ergonomic handles, Stand support
M8 rigging points |
Ergonomic handles, Stand support
M8 rigging points |
