Model: |
E-12 |
E-12A |
Type: |
12" Two Way Passive Full Range Loudspeaker |
12"Two Way Active Full Range Loudspeaker |
Frequency Response (-6 dB) : |
55Hz-19KHz |
55Hz-19KHz |
Power Handling (RMS / Peak) (AES) : |
450W/ 2000W |
450W RMS (1% THD) |
Sensitivity (1W / 1M) : |
99dB |
99dB |
MAX SPL (1M) : |
132dB |
|
Impedance: |
8¦¸ |
|
Dispersion (H ¡Á V) : |
70¡ã ¡Á 55¡ã, HF-Horn rotable |
70¡ã ¡Á 55¡ã, HF-Horn rotable |

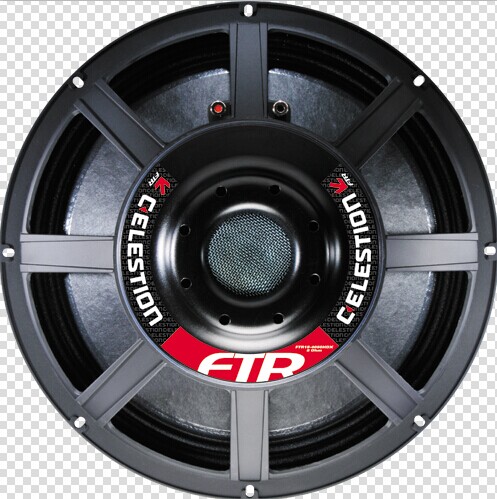

LF Transducer: |
12'' Neodymium Magnet, 3'' voice coil |
12'' Neodymium Magnet, 3'' voice coil |

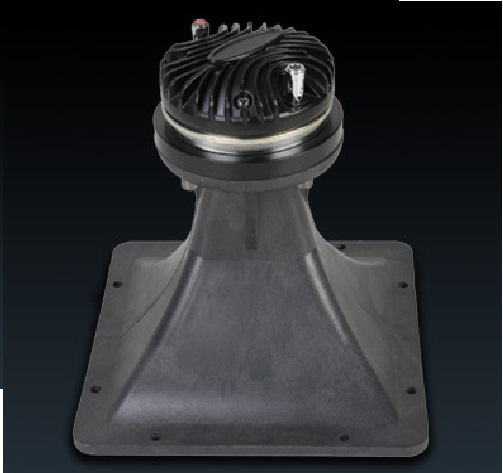

HF Transducer: |
PEN diaphragm, 1.75'' voice coil |
PEN diaphragm, 1.75" voice coil |
Crossover Frequency: |
1.7KHz, Passive |
1.7KHz |
Protection: |
Tweeter Protection |
Tweeter Protection |
Input Interface: |
2x Neutrik NL-4 pins+1/-1 input/ THRU, pins+2/-2 N.C. |
XLR/ 6.3mm jack(combo)/ Output: XLR |
Riging System: |
6¡ÁM8 rigging points |
|
Cabinet Material/ Paint: |
15mm Birch Plywood / Polyurea Paint |
15mm Birch Plywood / Polyurea Paint |
Dimensions (W ¡Á H ¡Á D) : |
390 x 620x 368mm |
390¡Á620¡Á368mm |
Net Weight: |
22.5Kg |
24Kg |
Features: |
Ergonomic handles, Stand support adjustablevertically(SM707), M8 rigging points |
Ergonomic handles, Stand support adjustable vertically(SM707), M8 rigging points |
