Model: |
E-15 |
E-15A |
|
Type: |

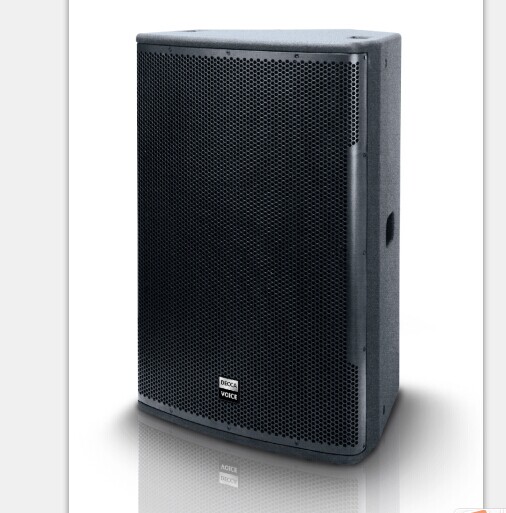

15" Two Way Passive Full Range Loudspeaker |
15"Two Way Active Full Range Loudspeaker |
|
Frequency Response (-6 dB) : |
50Hz-19KHz |
50Hz-19KHz |
|
Power Handling
(RMS / Peak) (AES) : |
500W/2000W |
500W RMS (1% THD) |
|
Sensitivity (1W / 1M) : |
100dB |
100dB |
|
MAX SPL (1M) : |
134dB |
|
|
Impedance: |
8¦¸ |
|
|
Dispersion (H ¡Á V) : |
70¡ã ¡Á 55¡ã, HF-Horn rotable |
70¡ã ¡Á 55¡ã, HF-Horn rotable |
|

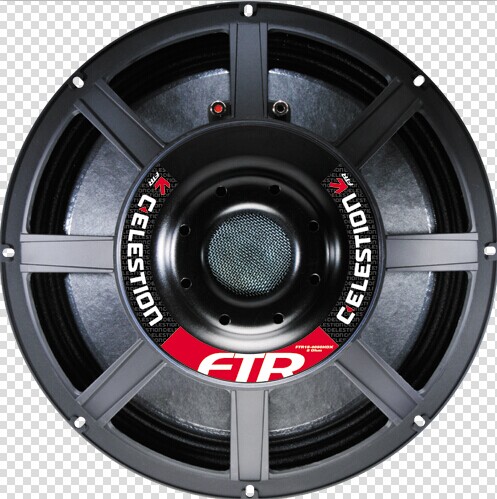

LF Transducer: |
15'' Magnet, 3'' voice coil |
15'' Magnet, 3'' voice coil |
|

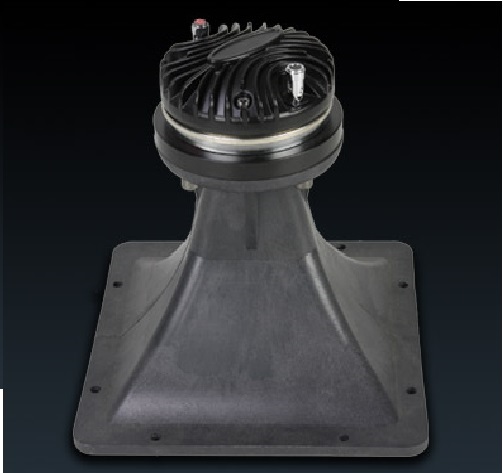

HF Transducer: |
PEN diaphragm,
1.75'' voice coil |
PEN diaphragm,
1.75" voice coil |
|
Crossover Frequency: |
1.6KHz, Passive |
1.6KHz |
|
Protection: |
Tweeter Protection |
Tweeter Protection |
|
Input Interface: |
2x Neutrik NL-4
pins+1/-1 input/ THRU, pins+2/-2 N.C. |
XLR/ 6.3mm jack(combo)/ Output: XLR |
|
Riging System: |
6¡ÁM8 rigging points |
|
|
Cabinet Material/ Paint: |
15mm Birch Plywood / Polyurea Paint |
15mm Birch Plywood / Polyurea Paint |
|
Dimensions (W ¡Á H ¡Á D) : |
450 x 716x 448mm |
450 x 716x 448mm |
|
Net Weight: |
27Kg |
29Kg |
|
Features: |
Ergonomic handles, Stand support
M8 rigging points |
Ergonomic handles, Stand support
M8 rigging points |
