E-118B / E-218B
E-118B / E-218B

18" Bandpass Subwoofer / Dual 18" Bass-Reflex Subwoofer

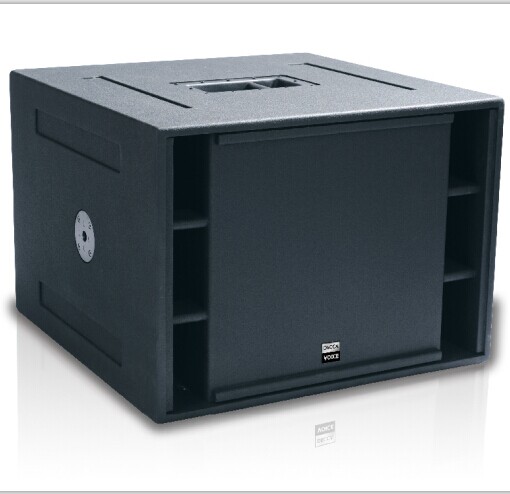

The E-118B is a 18" bandpass subwoofer with 900W RMS and 135 dB Max SPL.

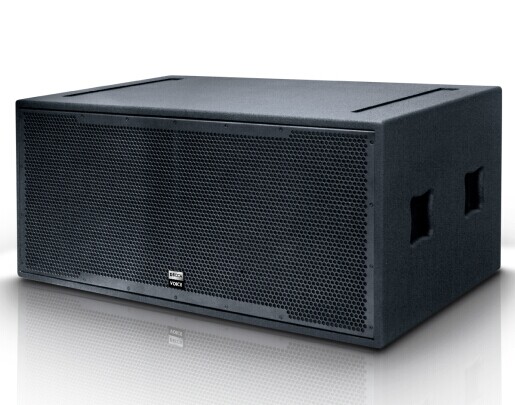

The E-218B is a dual 18" bandpass subwoofer with 1800W RMS and 136dB Max SPL. Engineered with CATAR Technology (Clear Audio Time Aligned Responds) it provides an outstanding sound reproduction. Offering plenty of tight and punchy bass, the E-218B blends beautifully with the E-LINE or E-ARRAY and form an excellent full range response with high SPL and clear sound. The uniquely designed cabinets are all made of multiplex and coated with the Polyurea coating-which helps stand up to the tough daily demands of touring and live applications.



Model:

E-118B

 E-218B

Type:

18" Bandpass Subwoofer

Dual 18" Bass-Reflex Subwoofer

Frequency Response (-6 dB) :

36Hz-120Hz

38Hz-200Hz

Power Handling
(RMS / Peak) (AES) :

900W/ 3600W

1800W/ 6400W

Sensitivity (1W / 1M) :

100dB

98 dB

MAX SPL (1M) :

135dB

136 dB

Impedance:

8¦¸

4¦¸

LF Transducer:

18" Ferrite magnet, 4"voice coil

2 x18" Ferrite magnet, 4" voice coil

Input Interface:

2x Neutrik NL-4
pins+1/-1 input/ THRU, pins+2/-2 N.C.

2x Neutrik NL-4
pins+1/-1 input/ THRU, pins+2/-2 N.C.

Cabinet Material/ Paint:

18mm Birch Plywood / Polyurea Paint

18mm Birch Plywood / Polyurea Paint

Dimensions (W ¡Á H ¡Á D) :

 762 x 558 x 762mm

700 x 552 x 1236mm

Net Weight:

 66Kg

86Kg

Features:

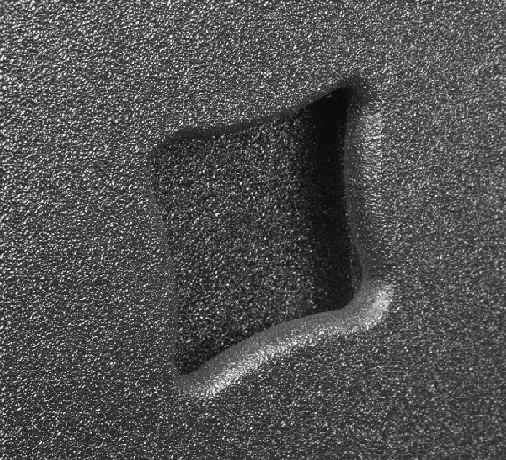

Ergonomic handles,
Threaded flange(M20),
Prepared for Transport Wheels

Ergonomic handles,
Prepared for Transport Wheels
