Coax-8/ 12
Coax-8/ 12

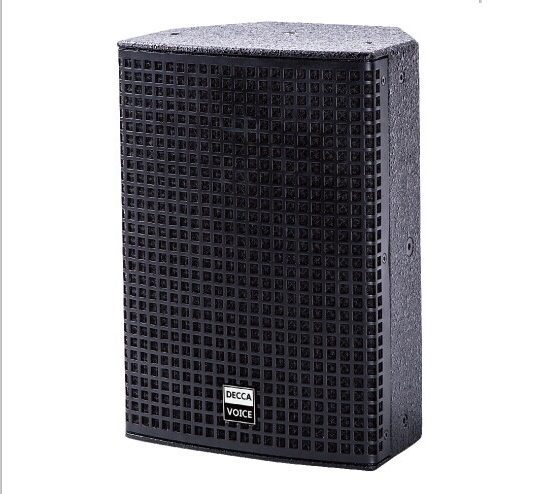

8" / 12"Coaxial Two Way Passive Full Range Loudspeaker

With the coaxial and co-magnetic structure, the 8¡° / 12¡¯¡¯coaxial loudspeaker can produce sound with an excellent articulation. It is characterized by compact configuration, small size, high SPL and appealing design. The mounting brackets is used for both horizontal and vertical installation. It has been widely used in medium and small-scale venue for indoor sound reinforcement and complement.



Model: COAX 8 COAX 12
Type: 8" Coaxial Two Way Passive Full Range Loudspeaker 12" Coaxial Two Way Passive Full Range Loudspeaker
Frequency Response (-6 dB) : 80-20 kHz,with -3dB High-frequency Attenuation Switch 50-20kHz,with -3dB High-frequency Attenuation Switch
Power Handling(RMS./Peak ) : (IEC)180W / 720W (AES)250W / 1000W (IEC)400W/1200W     (AES)4500W/1600W
Sensitivity(1W/ 1M ): 95dB 97dB
MAX SPL(1M ): 125dB 130dB
Impedance: 8¦¸ 8¦¸
Dispersion(H ¡Á V): 90¡ã ¡Á 90¡ã 90¡ã ¡Á 90¡ã

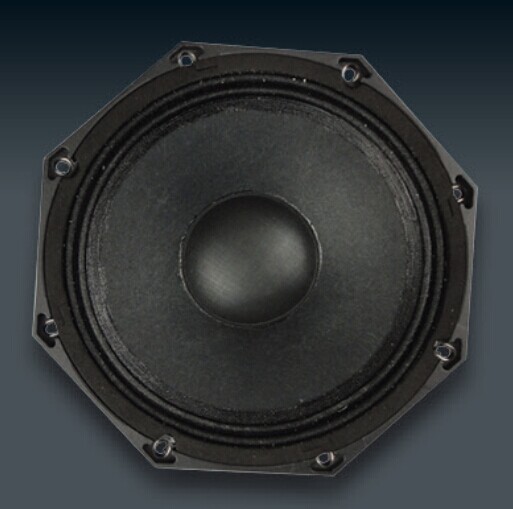

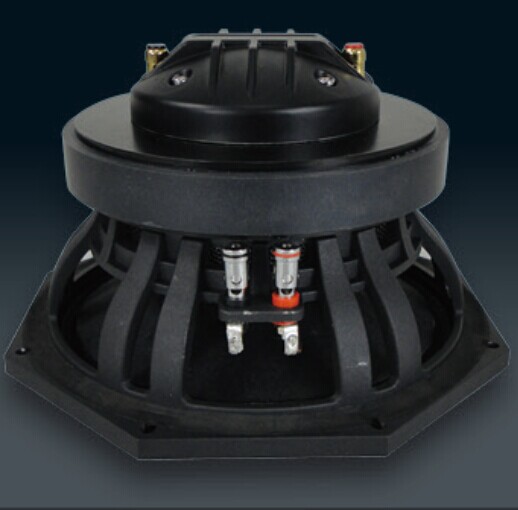

LF Unit: 8" Ferrite Magnet, 2" Voice Coil 12" Ferrite Magnet, 3" Voice Coil

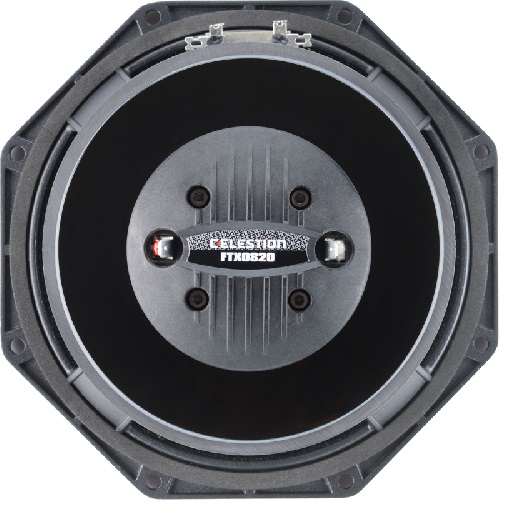

HF Unit: 1.75" Ferrite PEN film compression unit 1.4" Neodymium PEN film compression unit, 1.75" Voice Coil
Crossover Frequency: 1.8KHz 1.8KHz
Protection: Tweeter Protection Tweeter Protection
Input Interface: 1 ¡Á Neutrik NL-4
pins+1/-1 input
pins+2/-2 THRU		 1¡ÁNeutrik NL-4
pins+1/-1 input
pins+2/-2 THRU
Rigging System:

8 ¡Á M5 Rigging point, 3 ¡Á M6 Rigging point,

8 ¡Á M8 Rigging point

 20 ¡Á M8 Rigging point
Cabinet Material/ Paint: 12mm Selected Plywood / Water Borne Texture Paint 15mm Selected Plywood / Water Borne Texture Paint
Dimensions(W¡ÁH¡ÁD): 240 ¡Á 352 ¡Á 208 mm 370 ¡Á 520 ¡Á 350 mm
Net Weight: 7.8Kg 20.5Kg
Available Accessory: See Accessories Page See Accessories Page
