Dual-channel Pro Power Amplifier
MA 2000 series power amplifier is equipped with DDT compression and double overheating protection system by adopting German technology. It possesses functions of mute switch protection and also startup protection for overheating/DC/short circuit/overloading.
The series has been modified in terms of appearance design, internal structure, circuit design and sound performance so as to provide extraordinary sound quality. With features of high power, multifunction, high quality, stability and reliability, the series is a kind of class AB pro power amplifier which is able to fulfill the demands of both indoor and outdoor applications.
Model Name : |

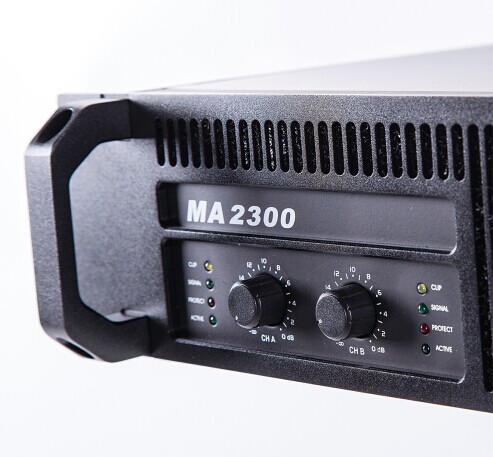

MA 2300 |

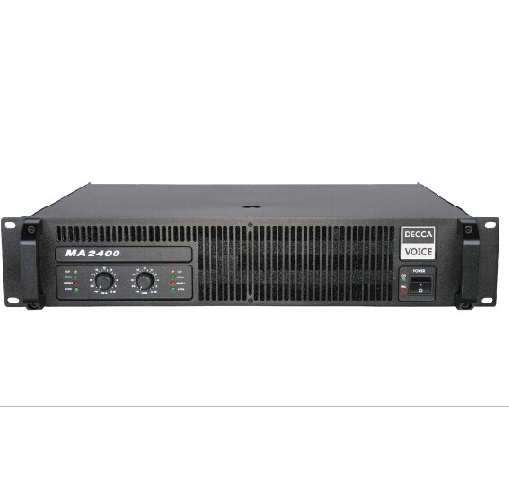

MA 2400 |
MA 2600 |
MA 2800 |

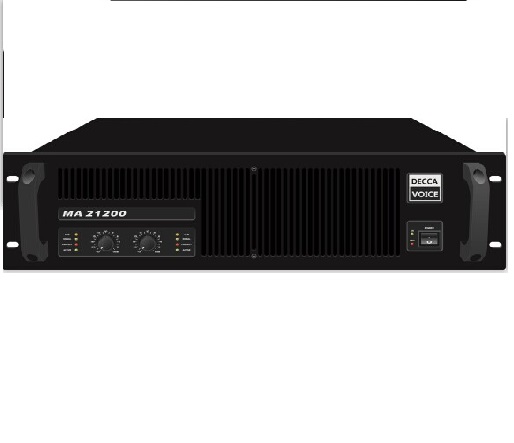

MA 21200 |
Output Power 1KHz, < 0.05ㄔTHD : |
|
|
|
|
|
8 次 : |
2 x 300W |
2 x 400W |
2 x 600W |
2 x 800W |
2 x 1200W |
4 次 : |
2 x 450W |
2 x 600W |
2 x 900W |
2 x 1200W |
2 x 1800W |
2 次 : |
Inapplicable |
2 x 800W |
2 x 1100W |
2 x 1400W |
2 x 2400W |
16 次Bridge : |
napplicable |
Inapplicable |
Inapplicable |
Inapplicable |
2400W |
8 次Bridge : |
700W |
1000W |
1800W |
2000W |
3600W |
4 次Bridge : |
Inapplicable |
1200W |
2000W |
2400W |
4800W |
Frequency Response(+/- 0.1dB): |
20Hz-20 KHz |
20Hz-20 KHz |
20Hz-20 KHz |
20Hz-20 KHz |
20Hz-20 KHz |
Reflex Response(@1W20-20 KHz): |
+ 15∼ |
+ 15∼ |
+ 15∼ |
+ 15∼ |
+ 15∼ |
THD 1KHz(20Hz-20 KHz): |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.03ㄔ |
IMD (SMPTE) : |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.05ㄔ |
≒ 0.01ㄔ |
Damping Factor(20-500Hz@ 8 次) : |
400:1 |
450:1 |
500:1 |
550:1 |
650:1 |
Crosstalk(20Hz-20 KHz) |
>75 dB |
>75 dB |
>75 dB |
>75 dB |
>75 dB |
Gain (optional) : |
26 / 32 / 38 dB |
26 / 32 / 38 dB |
26 / 32 / 38 dB |
26 / 32 / 38 dB |
26 / 32 / 38 dB |
Sensitivity: |
0.775 / 1.0 / 1.55 V |
0.775 / 1.0 / 1.55 V |
0.775 / 1.0 / 1.55 V |
0.775 / 1.0 / 1.55 V |
0.775 / 1.0 / 1.44 V |
Signal to Noise Ratio: |
103 dB |
105 dB |
105 dB |
106 dB |
106 dB |
Dimensions(WxHxD): |
483 x 88 x 420 mm |
483 x 88 x 420 mm |
483 x 88 x 490 mm |
483 x 88 x 490 mm |
483 x 133 x 500 mm |
Net Weight(Kg): |
17 Kg |
18 Kg |
23 Kg |
25 Kg |
40 Kg | |
