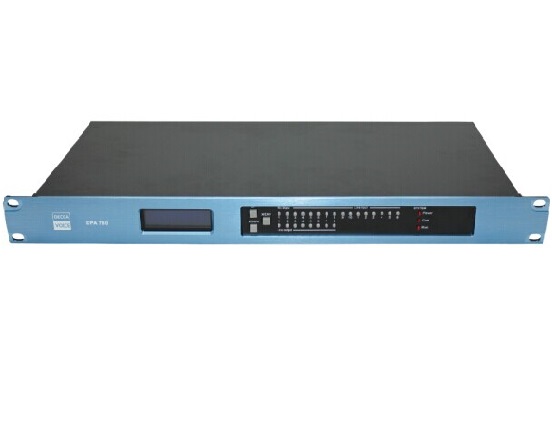

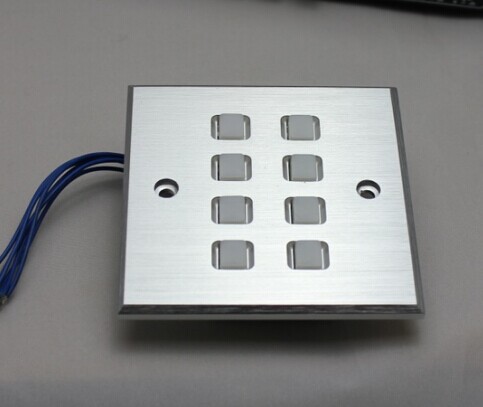

DPA780 is a 16 in 8 out of the audio media matrix processor, design for to high quality sound , it provides clear and constant quality sound. As a necessary equipment in many installed sound systems. DPA780 can directly connect with Windows interface, the program setup is simple and efficient. In the user control signal controller can be connected to wall-controller, can also be controlled by central control system for a third party.

Main features:

17 x 8 all mixed matrix module, 136 in all mixed points level can be     adjusted.
16 Channels input signal: 8 channels balance Mic input with phantom power, 8 channels signal balance Line input and 1 channel after mixing input.
8 channels balance signal output are adjustable with delay and 3 period of equalization adjustment and gain control.

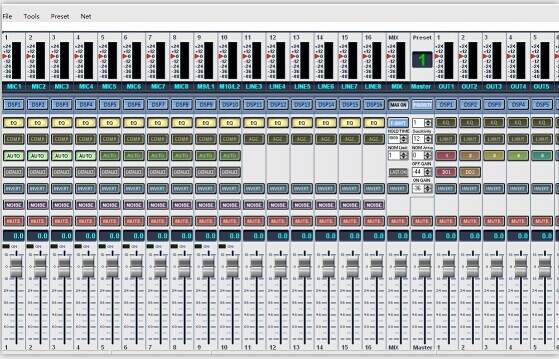

Software provides complete debugging and UV, can memory 8 scenes.
have personalized module, built-in software programming, system Settings and all Settings backup and replication.

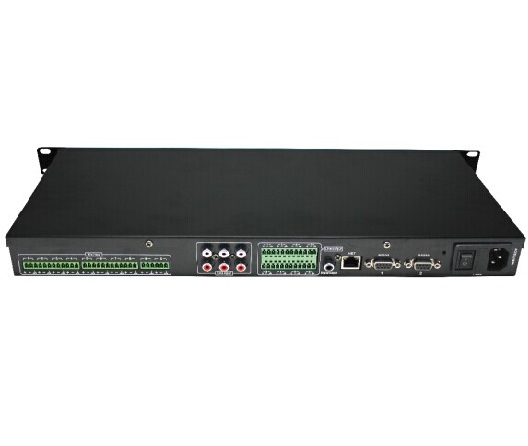

Signal connection:

8 channel balance Mic input: 3.81 the phoenix terminals
8 channel line input: standard RCA interface.
8 channel balance circuit output channel: 3.81 the phoenix terminals
PC data exchange: RS232 interface, USB interface and the Ethernet interface.

Technical specification:

THD + Noise : -82dB @22dBu,1KHz,0dB gain
Dynamic range: the max 105 db
Channel separating degree: - 85 db
THD: 0.8 ‰
