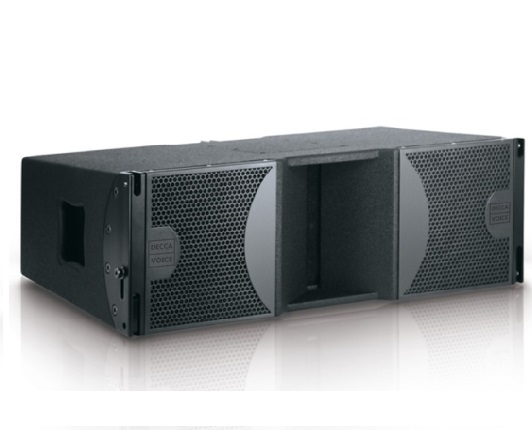

Dual 8" two way line array speaker

The E-L8 is dual 8" vertical line source concert system with variable curvature, primarily designed for live performances from small to large indoor and outdoor venuse. The power handling is 650W RMS each top.

Application

· Large and medium scale performance
· Large and medium-sized stadium
· Theater and auditorium
· Concert,pub,club

Model: E-L8
Type: Dual 8'' two way line array speaker

Acoustical Specifications
Frequency Range(-6dB): 70 - 19 kHz
Max. SPL(1m): 136 dB
Horizontal Dispersion(-6dB): 100°
Vertical Dispersion(-6dB): 10°× 1

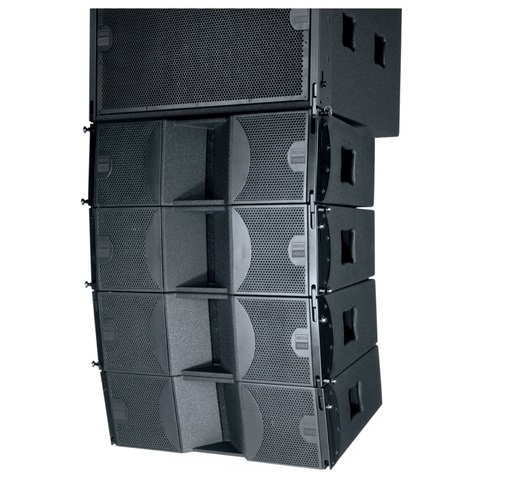

Max Qty of rigging (12 : 1 Safety Factor, using original accessories) : 24 pcs
Vertical Dispersion(-6dB): LF: RMS / Peak (AES): 500 W / 2000 W
HF: RMS / Peak (AES): 150 W / 600 W

Transducer

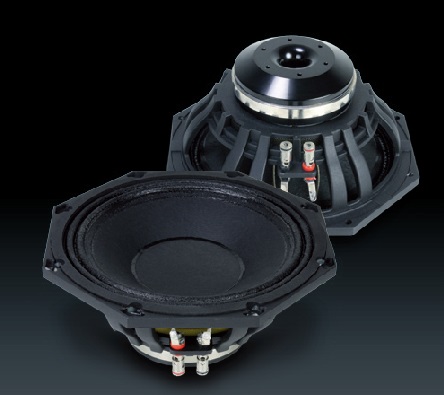

LF: LF: 2 x 8" neodymium magnet, 2" voice coil
1× 16 Ω (2 pcs of 8Ω in series connection)
2× 250 W RMS (AES / 2 hrs) 2x 15" , 4" voice coil
1× 4 Ω (2 pcs of 8 Ω in parallel connection)
2× 600 W RMS (AES / 2 hrs)
Sensitivity(1W / 1M): 103 dB 99 dB
Max. SPL(AES): 136 dB 136 dB

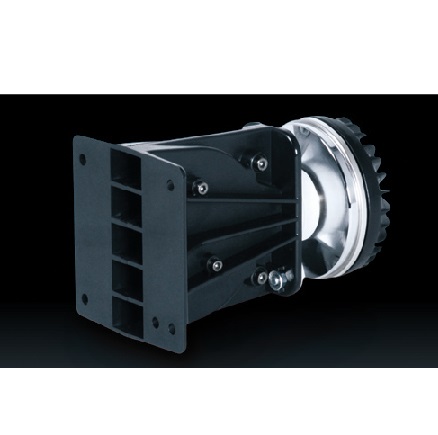

HF: 2x 1" neodymium magnet, titanium diaphragm, 1.35" voice coil
1× 16 Ω (2 pcs of 8 Ω in series connection)
2× 75 W RMS (AES / 2 hrs)
Sensitivity(1W / 1M): 108 dB
Max. SPL(AES): 136 dB

Recommended Amplifier: 4 pcs of  L8 as a set
LF: 2×1250 W / 8 Ω, Dual channel  MA 21200
HF: 2×810 W / 8 Ω, Dual channel  MA 2800
Recommended Crossover Frequency
LF / HF: 1.6 kHz

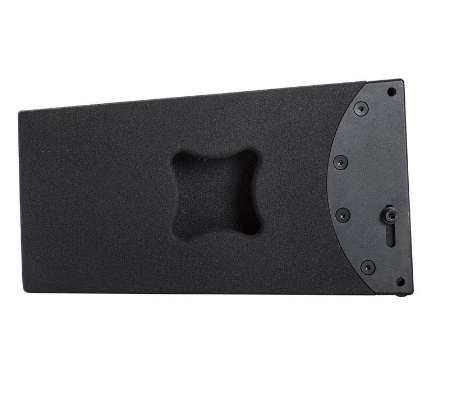

Enclosure 18 mm birch plywood, Polyurethane coating 18 mm birch plywood, Polyurethane coating
Rigging System 6061 Aluminium，SUS 630 sainless steel safety pin, 12:1
Input Interface Neutrik®Speakon 2×NL-4
pins+1/-1 LF
pins+2/-2 HF Neutrik®Speakon 2×NL-4
pins+1/-1 LF
pins+2/-2 N.C.
Dimensions (W×H×D): 740 x 247 x 467 mm
Net Weight: 27.5 kg
