E-LPS215B
E-LPS215B

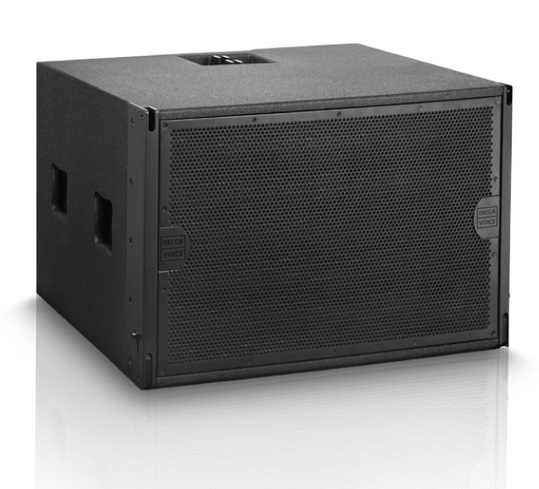

Dual 15"  line array  bandpass subwoofer speaker

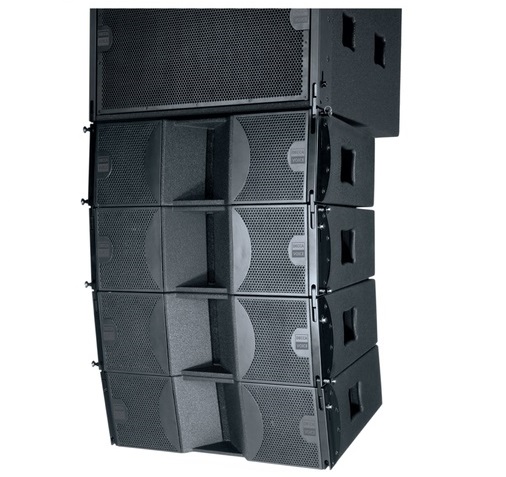

The E-LPS215B is a dual 15" , bandpass subwoofer with 1200W RMS. Offering plenty of tight and punchy bass, the E-LPS215B blends beautifully with the E-L8 and form an excellent full range response
with high SPL and clear sound.

Application

¡¤ Large and medium scale performance
¡¤ Large and medium-sized stadium
¡¤ Theater and auditorium
¡¤ Concert,pub,club

Model:E-LPS215B
Type: Dual 15" bandpass subwoofer
Acoustical Specifications

Frequency Range(-6dB): 34 Hz - 150 Hz
Max. SPL(1m): 136 dB

Transducer
Sensitivity(1W / 1M):99 dB

Enclosure 18 mm birch plywood, Polyurethane coating

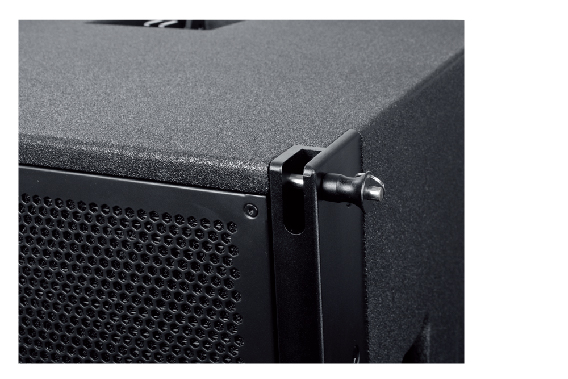

Rigging System 6061 Aluminium£¬SUS 630 sainless steel safety pin, 12:1 safety factor
Input Interface Neutrik?Speakon 2¡ÁNL-4

Dimensions (W¡ÁH¡ÁD):740 x 506 x 732 mm
Net Weight:81.5 kg
